Doppler-Free Saturation Spectroscopy

Introduction

On the previous page, we saw that under typical laboratory conditions, the Doppler effect often limits the achievable resolution in laser spectroscopy.

Fortunately, there are experimental techniques that allow us to overcome Doppler broadening—even when working with atomic samples at room temperature or much higher.

In the following sections, we will focus on one specific example: Doppler-free saturation absorption spectroscopy. We will explore how this method works and how it enables the measurement of atomic transitions with much higher precision than would otherwise be possible.

We will consider two cases:

1. A two-level system, where only two states are involved in the interaction between the atom and the radiation field.

2. A three-level system, where the two lower states are close in energy (but not degenerate) and direct transitions between them are forbidden.

Such three-level systems are commonly referred to as \(\Lambda\) systems because their level diagram (see figure below) resembles the Greek letter lambda (\(\Lambda\)). They are ubiquitous in nature, often arising due to the hyperfine splitting of the atomic ground state.

Two-level and three-level \(\Lambda\) systems.

---

1. Laser Absorption in a Thermal Gas

Let us consider a simple situation: a narrow-band laser beam passing through an atomic gas. We want to see how the transmitted laser intensity changes as we scan the laser frequency.

Below is an interactive diagram to help visualize this process:

import numpy as np
import plotly.graph_objects as go
from plotly.subplots import make_subplots
from scipy.stats import norm, cauchy

# FWHM = 2.355 * sigma, so sigma = FWHM / 2.355
fwhm = 1
sigma = fwhm / 2.355

# Prepare data
v = np.linspace(-1, 1, 100)
L = 1 * v


x_right = np.linspace(-1, 1, 200)

def profile_right(v0):
    width = 0.02;
    exc = cauchy.pdf(2*(x_right-v0)/width) / cauchy.pdf(0)
    ngs = norm.pdf(x_right, 0, sigma)/norm.pdf(0, 0, sigma) * ( 1 - 0.5*exc )
    return ngs


# Bottom plot - Gaussian
#def gaussian_b(v0):
#    x_bottom = np.linspace(-1, 1, 200)
#    return profile_bottom(v0, x_bottom)

# Left plot - 1 - 0.5*Gaussian
#x_top = np.linspace(-1, 1, 200)
#gaussian_top = norm.pdf(x_top, 0, sigma)/norm.pdf(0, 0, sigma)
#profile_top = 1 - 0.3 * gaussian_top

def x_top(x):
    return np.linspace(-1, x, int(100*(1+x)))

def profile_top(x):
    return 1 - 0.3 * norm.pdf(x, 0, sigma)/norm.pdf(0, 0, sigma)





# Create subplots
fig = make_subplots(
    rows=2, cols=2,
    row_heights=[0.25, 0.75],
    column_widths=[0.75, 0.25],
    horizontal_spacing=0.02,
    vertical_spacing=0.02,
    specs=[[{"type": "xy"}, None],
           [{"type": "xy"}, {"type": "xy"}]]
)

# Create frames for animation/slider
v0_values = np.linspace(-1, 1, 41)  # 41 steps from -1 to 1
frames = []

for v0 in v0_values:
    frame_data = [
        # Top plot trace
        go.Scatter(x=x_top(v0), y=profile_top(x_top(v0)), mode='lines',
                   line=dict(color='green', width=2), showlegend=False),
        # Top plot arrow
        go.Scatter(x=[v0], y=[profile_top(v0)],
                     mode="markers",
                     marker=dict(symbol='arrow-down', size=11, color="red")),
        go.Scatter(x=[v0,v0], y=[1,profile_top(v0)], mode='lines',
                   line=dict( color='red', width=2), showlegend=False),
        go.Scatter(x=[v0,v0], y=[0,profile_top(v0)], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        # Main plot line
        go.Scatter(x=v, y=L, mode='lines',
                   line=dict(color='black', width=2), showlegend=False),
        # Main plot marker
        go.Scatter(x=[v0,v0], y=[-1,1], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[v0,1], y=[v0,v0], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        # Main plot dot
        go.Scatter(x=[v0], y=[v0], mode='markers',
                   marker=dict(size=10, color='red'), showlegend=False),
        # Right plot
        go.Scatter(x=profile_right(v0), y=x_right, mode='lines',
                   line=dict(color='blue', width=2), showlegend=False),
        # Right plot marker
        go.Scatter(x=[0,1.1], y=[v0,v0], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False)
    ]
    frames.append(go.Frame(data=frame_data, name=str(v0)))

# Initial v0 = 0
v0_init = -0.95

# Add traces for initial state
# Top plot (row=1, col=1)
fig.add_trace(
    go.Scatter(x=x_top(v0_init), y=profile_top(x_top(v0_init)), mode='lines',
               line=dict(color='green', width=2), showlegend=False),
    row=1, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init], y=[profile_top(v0_init)],
                     mode="markers",
                     marker=dict(symbol='arrow-down', size=11, color="red")),
    row=1, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init,v0_init], y=[1,profile_top(v0_init)], mode='lines',
                   line=dict( color='red', width=2), showlegend=False),
    row=1, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init,v0_init], y=[profile_top(v0_init),0], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
    row=1, col=1
)

# Main plot (row=1, col=2)
fig.add_trace(
    go.Scatter(x=v, y=L, mode='lines',
               line=dict(color='black', width=2), showlegend=False),
    row=2, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init,v0_init], y=[-1,1], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
    row=2, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init,1], y=[v0_init,v0_init], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
    row=2, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init], y=[v0_init], mode='markers',
               marker=dict(size=10, color='red'), showlegend=False),
    row=2, col=1
)

# Right plot (row=2, col=2)
fig.add_trace(
    go.Scatter(x=profile_right(v0_init), y=x_right,  mode='lines',
               line=dict(color='blue', width=2), showlegend=False),
    row=2, col=2
)
fig.add_trace(
    go.Scatter(x=[0,1.1], y=[v0_init,v0_init], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
    row=2, col=2
)

# Add frames to figure
fig.frames = frames


# Settings to draw a black border line around the plot area
BORDER_SETTINGS = dict(
    showline=True,
    linecolor='black',
    linewidth=1,
    mirror=True # This forces the line to be drawn on all four sides of the plot area
)

fig.add_hline(y=1, line_color="black", line_width=1, line_dash="solid", row=1, col=1)
fig.add_trace(go.Scatter(x=x_top(1), y=profile_top(x_top(1)), mode='lines',
               line=dict(color='lightgray', width=1), showlegend=False), row=1, col=1)

# Update layout for top plot (row=1, col=1)
fig.update_xaxes(
    range=[-1, 1],
    showticklabels=False,
    showgrid=False,
    gridwidth=0.5,
    gridcolor='lightgray',
    zeroline=True,
    **BORDER_SETTINGS,
    row=1, col=1
)
fig.update_yaxes(
    range=[0, 1.1],
    showgrid=True,
    gridwidth=0.5,
    gridcolor='lightgray',
    zeroline=True,
    side='left',
    **BORDER_SETTINGS,
    row=1, col=1
)

# Update layout for main plot (row=1, col=2)
fig.update_xaxes(
    range=[-1, 1],
    showticklabels=True,
    tickvals=[0],
    showgrid=False,
    gridwidth=0.5,
    gridcolor='lightgray',
    zeroline=True,
    **BORDER_SETTINGS,
    row=2, col=1
)
fig.update_yaxes(
    range=[-1, 1],
    tickvals=[0],
    showgrid=False,
    gridwidth=0.5,
    gridcolor='lightgray',
    zeroline=True,
    **BORDER_SETTINGS,
    row=2, col=1
)

# Update layout for bottom plot (row=2, col=2)
fig.update_xaxes(
    range=[0, 1.1],
    showgrid=True,
    gridwidth=0.5,
    gridcolor='lightgray',
    zeroline=True,
    side='left',
    **BORDER_SETTINGS,
    row=2, col=2
)
fig.update_yaxes(
    range=[-1, 1],
    showticklabels=False,
    showgrid=False,
    gridwidth=0.5,
    gridcolor='lightgray',
    zeroline=True,
    **BORDER_SETTINGS,
    row=2, col=2
)

# Add slider
sliders = [dict(
    active=1,  # Start at v0=0 (middle of range)
    yanchor="top",
    y=-0.08,
    xanchor="left",
    x=0,
    currentvalue=dict(
        prefix="v0: ",
        visible=False,
        xanchor="right"
    ),
    pad=dict(b=10, t=50),
    len=0.75,
    steps=[dict(
        args=[[f.name], dict(
            frame=dict(duration=0, redraw=True),
            mode="immediate",
            transition=dict(duration=0)
        )],
        label=f"{v0:.2f}",
        method="animate"
    ) for f, v0 in zip(frames, v0_values)]
)]

fig.update_layout(
    sliders=sliders,
    height=650,
    width=650,
    showlegend=False,
    plot_bgcolor='white',
    margin=dict(l=80, r=50, t=75, b=75)
)

# Add annotations
fig.add_annotation(
    text="Δω = k v<sub>z</sub>",
    xref="x2", yref="y2",
    x=0.6, y=0.88,
    showarrow=False,
    font=dict(size=18, color='black'),
    xanchor='center'
)

# Labels using annotations to position them correctly
fig.add_annotation(
    text="transmitted<br>laser intensity",
    xref="paper", yref="paper",
    x=-0.075, y=0.99,
    showarrow=False,
    font=dict(size=15),
    textangle=-90,
    xanchor='center',
    yanchor='top'
)

fig.add_annotation(
    text="velocity v<sub>z</sub>",
    xref="paper", yref="paper",
    x=-0.05, y=0.37,
    showarrow=False,
    font=dict(size=15),
    textangle=-90,
    xanchor='center',
    yanchor='middle'
)

fig.add_annotation(
    text="frequency Δω",
    xref="paper", yref="paper",
    x=0.37, y=-0.025,
    showarrow=False,
    font=dict(size=15),
    xanchor='center',
    yanchor='top'
)

fig.add_annotation(
    text="ground state<br>population N",
    xref="paper", yref="paper",
    x=0.86, y=0.74,
    showarrow=False,
    font=dict(size=15),
    xanchor='center',
    yanchor='bottom'
)

fig.show()

Reading the interactive plot

• Central plot: The diagonal line represents the resonance condition \(\Delta \omega = k v_z\). Only atoms with velocities along this line are in resonance with the laser for the current detuning.

• Right plot: Shows the ground-state population as a function of velocity \(v_z\). The horizontal dashed line highlights the velocity class currently excited by the laser. The dip in the curve shows the “hole” burned in the distribution.

• Top plot: Shows the transmitted laser intensity. When atoms are excited and the ground-state population decreases, the transmitted intensity changes accordingly.

Resonance and Doppler Shift

Atoms absorb light only if the photon energy matches the energy difference between two atomic states:

\[ \hbar \omega = E_2 - E_1 \]

However, because atoms move along the laser beam, each atom experiences a Doppler shift:

\[ \Delta \omega = k v_z \]

• The central plot makes this visible: the intersection of the current laser detuning (vertical line) with the diagonal line shows which velocity classes are resonant.

• On the right plot, this velocity class corresponds to the horizontal dashed line, showing the portion of the ground-state population being depleted.

Hole-Burning and Absorption

• The laser burns a hole in the ground-state population for the resonant velocities.


• The top plot reflects the transmitted intensity: it decreases when atoms are excited and increases when fewer atoms can absorb.


• By scanning the laser frequency with the slider, you can see how:

  1. The “hole” moves through the velocity distribution on the right plot.

  2. The transmitted intensity in the top plot changes accordingly.

  3. The resulting absorption profile is Doppler broadened, because different velocities correspond to different detunings along the central plot.

---

2. Back-Reflecting the Laser Beam

In the previous section, we considered a single laser beam passing through the gas, which produced a Doppler-broadened absorption profile. Now, we introduce a simple but powerful modification: back-reflecting the laser beam so that it passes through the gas in the opposite direction.

import numpy as np
import plotly.graph_objects as go
from plotly.subplots import make_subplots
from scipy.stats import norm, cauchy

# FWHM = 2.355 * sigma, so sigma = FWHM / 2.355
fwhm = 1
sigma = fwhm / 2.355

# Prepare data
v = np.linspace(-1, 1, 100)
L = 1 * v
width = 0.02;


x_right = np.linspace(-1, 1, 200)

def profile_right(v0):
    exc1 = cauchy.pdf(2*(x_right-v0)/width) / cauchy.pdf(0)
    exc2 = cauchy.pdf(2*(x_right+v0)/width) / cauchy.pdf(0)
    if (v0==0):
        ngs = norm.pdf(x_right, 0, sigma)/norm.pdf(0, 0, sigma) * ( 1 - 0.55*exc1 )
    else:
        ngs = norm.pdf(x_right, 0, sigma)/norm.pdf(0, 0, sigma) * ( 1 - 0.45*exc1 ) * ( 1 - 0.45*exc2 )
    return ngs


# Bottom plot - Gaussian
#def gaussian_b(v0):
#    x_bottom = np.linspace(-1, 1, 200)
#    return profile_bottom(v0, x_bottom)

# Left plot - 1 - 0.5*Gaussian
#x_top = np.linspace(-1, 1, 200)
#gaussian_top = norm.pdf(x_top, 0, sigma)/norm.pdf(0, 0, sigma)
#profile_top = 1 - 0.3 * gaussian_top

def x_top(x):
    return np.linspace(-1, x, int(100*(1+x)))

def profile_top(x):
    return 1 - 0.3 * norm.pdf(x, 0, sigma)/norm.pdf(0, 0, sigma)

def profile2_top(x):
    return 1 - 0.5 * norm.pdf(x, 0, sigma)/norm.pdf(0, 0, sigma)

def profile_lambdip_top(x):
    return 1 - 0.5 * norm.pdf(x, 0, sigma)/norm.pdf(0, 0, sigma) + 0.15 * cauchy.pdf(2*x/(1.4*width)) / cauchy.pdf(0)




# Create subplots
fig = make_subplots(
    rows=2, cols=2,
    row_heights=[0.25, 0.75],
    column_widths=[0.75, 0.25],
    horizontal_spacing=0.02,
    vertical_spacing=0.02,
    specs=[[{"type": "xy"}, None],
           [{"type": "xy"}, {"type": "xy"}]]
)

# Create frames for animation/slider
v0_values = np.linspace(-1, 1, 41)  # 41 steps from -1 to 1
frames = []

for v0 in v0_values:
    frame_data = [
        # Top plot trace
        go.Scatter(x=x_top(v0), y=profile_lambdip_top(x_top(v0)), mode='lines',
                   line=dict(color='green', width=2), showlegend=False),
        # Top plot arrow
        go.Scatter(x=[v0], y=[profile_lambdip_top(v0)],
                     mode="markers",
                     marker=dict(symbol='arrow-down', size=11, color="red")),
        go.Scatter(x=[v0,v0], y=[1,profile_lambdip_top(v0)], mode='lines',
                   line=dict( color='red', width=2), showlegend=False),
        go.Scatter(x=[v0,v0], y=[0,profile_top(v0)], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        # Main plot line
        go.Scatter(x=v, y=L, mode='lines',
                   line=dict(color='black', width=2), showlegend=False),
        go.Scatter(x=v, y=-L, mode='lines',
                   line=dict(color='black', width=2), showlegend=False),
        # Main plot marker
        go.Scatter(x=[v0,v0], y=[-1,1], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[v0,1], y=[v0,v0], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[v0,1], y=[-v0,-v0], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        # Main plot dot
        go.Scatter(x=[v0], y=[v0], mode='markers',
                   marker=dict(size=10, color='red'), showlegend=False),
        go.Scatter(x=[v0], y=[-v0], mode='markers',
                   marker=dict(size=10, color='red'), showlegend=False),
        # Right plot
        go.Scatter(x=profile_right(v0), y=x_right, mode='lines',
                   line=dict(color='blue', width=2), showlegend=False),
        # Right plot marker
        go.Scatter(x=[0,1.1], y=[v0,v0], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[0,1.1], y=[-v0,-v0], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False)
    ]
    frames.append(go.Frame(data=frame_data, name=str(v0)))

# Initial v0 = 0
v0_init = -0.95

# Add traces for initial state
# Top plot (row=1, col=1)
fig.add_trace(
    go.Scatter(x=x_top(v0_init), y=profile_lambdip_top(x_top(v0_init)), mode='lines',
               line=dict(color='green', width=2), showlegend=False),
    row=1, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init], y=[profile_lambdip_top(v0_init)],
                     mode="markers",
                     marker=dict(symbol='arrow-down', size=11, color="red")),
    row=1, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init,v0_init], y=[1,profile_lambdip_top(v0_init)], mode='lines',
                   line=dict( color='red', width=2), showlegend=False),
    row=1, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init,v0_init], y=[profile_top(v0_init),0], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
    row=1, col=1
)

# Main plot (row=1, col=2)
fig.add_trace(
    go.Scatter(x=v, y=L, mode='lines',
               line=dict(color='black', width=2), showlegend=False),
    row=2, col=1
)
fig.add_trace(go.Scatter(x=v, y=-L, mode='lines',
                   line=dict(color='black', width=2), showlegend=False), row=2, col=1)
fig.add_trace(
    go.Scatter(x=[v0_init,v0_init], y=[-1,1], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
    row=2, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init,1], y=[v0_init,v0_init], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
    row=2, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init,1], y=[-v0_init,-v0_init], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
    row=2, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init], y=[v0_init], mode='markers',
               marker=dict(size=10, color='red'), showlegend=False),
    row=2, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init], y=[-v0_init], mode='markers',
               marker=dict(size=10, color='red'), showlegend=False),
    row=2, col=1
)

# Right plot (row=2, col=2)
fig.add_trace(
    go.Scatter(x=profile_right(v0_init), y=x_right,  mode='lines',
               line=dict(color='blue', width=2), showlegend=False),
    row=2, col=2
)
fig.add_trace(
    go.Scatter(x=[0,1.1], y=[v0_init,v0_init], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
    row=2, col=2
)
fig.add_trace(
    go.Scatter(x=[0,1.1], y=[-v0_init,-v0_init], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
    row=2, col=2
)

# Add frames to figure
fig.frames = frames


# Settings to draw a black border line around the plot area
BORDER_SETTINGS = dict(
    showline=True,
    linecolor='black',
    linewidth=1,
    mirror=True # This forces the line to be drawn on all four sides of the plot area
)

fig.add_hline(y=1, line_color="black", line_width=1, line_dash="solid", row=1, col=1)
fig.add_trace(go.Scatter(x=x_top(1), y=profile_top(x_top(1)), mode='lines',
               line=dict(color='lightgray', width=1), showlegend=False), row=1, col=1)
fig.add_trace(go.Scatter(x=x_top(1), y=profile2_top(x_top(1)), mode='lines',
               line=dict(color='gray', width=1), showlegend=False), row=1, col=1)
#fig.add_trace(go.Scatter(x=x_top(1), y=profile_lambdip_top(x_top(1)), mode='lines',
#               line=dict(color='green', width=2), showlegend=False), row=1, col=1)


# Update layout for top plot (row=1, col=1)
fig.update_xaxes( range=[-1, 1], showticklabels=False, showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS,row=1, col=1)
fig.update_yaxes( range=[0, 1.1], showgrid=True, gridwidth=0.5, gridcolor='lightgray', zeroline=True, side='left', **BORDER_SETTINGS, row=1, col=1)

# Update layout for main plot (row=1, col=2)
fig.update_xaxes( range=[-1, 1], showticklabels=True, tickvals=[0], showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS, row=2, col=1)
fig.update_yaxes( range=[-1, 1], tickvals=[0], showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS, row=2, col=1)

# Update layout for bottom plot (row=2, col=2)
fig.update_xaxes( range=[0, 1.1], showgrid=True, gridwidth=0.5, gridcolor='lightgray', zeroline=True, side='left', **BORDER_SETTINGS, row=2, col=2)
fig.update_yaxes( range=[-1, 1], showticklabels=False, showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS, row=2, col=2)

# Add slider
sliders = [dict(
    active=1,  # Start at v0=0 (middle of range)
    yanchor="top",
    y=-0.08,
    xanchor="left",
    x=0,
    currentvalue=dict(
        prefix="v0: ",
        visible=False,
        xanchor="right"
    ),
    pad=dict(b=10, t=50),
    len=0.75,
    steps=[dict(
        args=[[f.name], dict(
            frame=dict(duration=0, redraw=True),
            mode="immediate",
            transition=dict(duration=0)
        )],
        label=f"{v0:.2f}",
        method="animate"
    ) for f, v0 in zip(frames, v0_values)]
)]

fig.update_layout(
    sliders=sliders,
    height=650,
    width=650,
    showlegend=False,
    plot_bgcolor='white',
    margin=dict(l=80, r=50, t=75, b=75)
)

# Add annotations
fig.add_annotation( text="Δω = k v<sub>z</sub>", xref="x2", yref="y2", x=0.6, y=0.88, showarrow=False, font=dict(size=18, color='black'), xanchor='center')
fig.add_annotation( text="Δω = - k v<sub>z</sub>", xref="x2", yref="y2", x=-0.4, y=0.7, showarrow=False, font=dict(size=18, color='black'), xanchor='center')

# Labels using annotations to position them correctly
fig.add_annotation( text="transmitted<br>laser intensity", xref="paper", yref="paper", x=-0.075, y=0.99, showarrow=False, font=dict(size=15), textangle=-90, xanchor='center', yanchor='top')

fig.add_annotation( text="velocity v<sub>z</sub>", xref="paper", yref="paper", x=-0.05, y=0.37, showarrow=False, font=dict(size=15), textangle=-90, xanchor='center', yanchor='middle')

fig.add_annotation( text="frequency Δω", xref="paper", yref="paper", x=0.37, y=-0.025, showarrow=False, font=dict(size=15), xanchor='center', yanchor='top')

fig.add_annotation( text="ground state<br>population N", xref="paper", yref="paper", x=0.86, y=0.74, showarrow=False, font=dict(size=15), xanchor='center', yanchor='bottom')

fig.show()

Reading the updated plot

• Central plot: Now there are two diagonal lines, representing the resonance conditions for the forward and backward laser beams:
  • \(\Delta \omega = k v_z\) (forward beam)

  • \(\Delta \omega = -k v_z\) (backward beam)
    At most detunings, these lines correspond to different velocity classes, so the two beams excite different groups of atoms.

• Right plot: Shows the ground-state population as a function of velocity. At each detuning, atoms resonant with either beam are depleted.

• Top plot: Shows the transmitted intensity. The overall absorption still reflects the Doppler-broadened distribution.

Saturation and the Lamb Dip

Something special happens at zero detuning:

• At \(\Delta \omega = 0\), both beams are resonant with the same atoms, namely those with \(v_z \approx 0\).

• These atoms can only absorb a limited number of photons: the transition becomes saturated.

• As a result, the overall absorption decreases at this detuning, creating a narrow reduction in transmitted intensity — the Lamb dip in the top plot.

In other words, the Lamb dip arises because the two beams “share” the same atoms, and the transition cannot absorb more than its saturation limit. This is why saturation is essential for observing the Doppler-free feature.

Why the Lamb Dip is Doppler-Free

• Only atoms with \(v_z \approx 0\) experience both beams simultaneously, so their resonance is independent of Doppler shifts.

• By focusing on this narrow central feature, we can measure the natural linewidth of the transition, without thermal broadening.

• The Doppler-broadened wings are still present, but the Lamb dip at the center reveals the true atomic resonance.

Use the slider to scan the laser frequency:

1. Observe the diagonal lines in the central plot and which velocity classes are excited by each beam.

2. Notice that at zero detuning, the ground-state population is depleted by both beams, but saturation limits the total absorption, producing the Lamb dip.

3. Watch the Lamb dip emerge in the top plot, at the center of the Doppler-broadened absorption profile.

---

3. Single Laser Beam Absorption of a Three-Level \(\Lambda\) System

Many atoms used in laser spectroscopy have two hyperfine levels in the ground state, forming a three-level \(\Lambda\) system when combined with a single excited state. In this situation, a single laser interacts with one of the ground states, but the population dynamics become more complex.

import numpy as np
import plotly.graph_objects as go
from plotly.subplots import make_subplots
from scipy.stats import norm, cauchy

# FWHM = 2.355 * sigma, so sigma = FWHM / 2.355
fwhm = 1
sigma = fwhm / 2.355

# Prepare data
v = np.linspace(-1, 1, 100)
L = 1 * v


x_right = np.linspace(-1, 1, 200)

def profile_right(v0, n):
    width = 0.02;
    dwidth = 0.08;
    pop1_raw=0.6 * norm.pdf(x_right, 0, sigma)/norm.pdf(0, 0, sigma)
    pop2_raw=0.4 * norm.pdf(x_right, 0, sigma)/norm.pdf(0, 0, sigma)
    depl1= 0.05 * norm.pdf(x_right-v0-0.2, 0, dwidth)*pop1_raw
    depl2= 0.05 * norm.pdf(x_right-v0+0.2, 0, dwidth)*pop2_raw
    pop1 = pop1_raw - depl1 + depl2
    pop2 = pop2_raw + depl1 - depl2
    exc1 = cauchy.pdf(2*(x_right-v0-0.2)/width) / cauchy.pdf(0)
    exc2 = cauchy.pdf(2*(x_right-v0+0.2)/width) / cauchy.pdf(0)
    pop1 = pop1 * ( 1 - 0.5*exc1 )
    pop2 = pop2 * ( 1 - 0.5*exc2 )
    if (n==1):
        return pop1
    elif (n==2):
        return pop2
    elif (n==3):
        return pop1_raw
    elif (n==4):
        return pop2_raw
    else: return 0


# Bottom plot - Gaussian
#def gaussian_b(v0):
#    x_bottom = np.linspace(-1, 1, 200)
#    return profile_bottom(v0, x_bottom)

# Left plot - 1 - 0.5*Gaussian
#x_top = np.linspace(-1, 1, 200)
#gaussian_top = norm.pdf(x_top, 0, sigma)/norm.pdf(0, 0, sigma)
#profile_top = 1 - 0.3 * gaussian_top

def x_top(x):
    return np.linspace(-1, x, int(100*(1+x)))

def profile_top(x):
    return 1 - 0.3 * norm.pdf(x, 0, sigma)/norm.pdf(0, 0, sigma)





# Create subplots
fig = make_subplots(
    rows=2, cols=2,
    row_heights=[0.25, 0.75],
    column_widths=[0.75, 0.25],
    horizontal_spacing=0.02,
    vertical_spacing=0.02,
    specs=[[{"type": "xy"}, None],
           [{"type": "xy"}, {"type": "xy"}]]
)

# Create frames for animation/slider
v0_values = np.linspace(-1, 1, 41)  # 41 steps from -1 to 1
frames = []

for v0 in v0_values:
    frame_data = [
        # Top plot trace
        go.Scatter(x=x_top(v0), y=profile_top(x_top(v0)), mode='lines',
                   line=dict(color='green', width=2), showlegend=False),
        # Top plot arrow
        go.Scatter(x=[v0], y=[profile_top(v0)],
                     mode="markers",
                     marker=dict(symbol='arrow-down', size=11, color="red")),
        go.Scatter(x=[v0,v0], y=[1,profile_top(v0)], mode='lines',
                   line=dict( color='red', width=2), showlegend=False),
        go.Scatter(x=[v0,v0], y=[0,profile_top(v0)], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        # Main plot line
        go.Scatter(x=v, y=L-0.2, mode='lines', line=dict(color='black', width=2), showlegend=False),
        go.Scatter(x=v, y=L+0.2, mode='lines', line=dict(color='black', width=2), showlegend=False),
        # Main plot marker
        go.Scatter(x=[v0,v0], y=[-1,1], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[v0_init,1], y=[v0-0.2,v0-0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[v0_init,1], y=[v0+0.2,v0+0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        # Main plot dot
        go.Scatter(x=[v0], y=[v0-0.2], mode='markers', marker=dict(size=10, color='red'), showlegend=False),
        go.Scatter(x=[v0], y=[v0+0.2], mode='markers', marker=dict(size=10, color='red'), showlegend=False),
        # Right plot
        go.Scatter(x=profile_right(v0, 1), y=x_right, mode='lines', line=dict(color='blue', width=2), showlegend=False),
        go.Scatter(x=profile_right(v0, 2), y=x_right, mode='lines', line=dict(color='red', width=2), showlegend=False),
        # Right plot marker
        go.Scatter(x=[0,1.1], y=[v0-0.2,v0-0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[0,1.1], y=[v0+0.2,v0+0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False)
    ]
    frames.append(go.Frame(data=frame_data, name=str(v0)))

# Initial v0 = 0
v0_init = -0.95

# Add traces for initial state
# Top plot (row=1, col=1)
fig.add_trace(
    go.Scatter(x=x_top(v0_init), y=profile_top(x_top(v0_init)), mode='lines',
               line=dict(color='green', width=2), showlegend=False),
    row=1, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init], y=[profile_top(v0_init)],
                     mode="markers",
                     marker=dict(symbol='arrow-down', size=11, color="red")),
    row=1, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init,v0_init], y=[1,profile_top(v0_init)], mode='lines',
                   line=dict( color='red', width=2), showlegend=False),
    row=1, col=1
)
fig.add_trace(
    go.Scatter(x=[v0_init,v0_init], y=[profile_top(v0_init),0], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
    row=1, col=1
)

# Main plot (row=1, col=2)
fig.add_trace(go.Scatter(x=v, y=L-0.2, mode='lines', line=dict(color='black', width=2), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=v, y=L+0.2, mode='lines', line=dict(color='black', width=2), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init,v0_init], y=[-1,1], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init,1], y=[v0_init-0.2,v0_init-0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init,1], y=[v0_init+0.2,v0_init+0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init], y=[v0_init-0.2], mode='markers', marker=dict(size=10, color='red'), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init], y=[v0_init+0.2], mode='markers', marker=dict(size=10, color='red'), showlegend=False), row=2, col=1)

# Right plot (row=2, col=2)
fig.add_trace(go.Scatter(x=profile_right(v0_init, 1), y=x_right,  mode='lines', line=dict(color='blue', width=2), showlegend=False), row=2, col=2)
fig.add_trace(go.Scatter(x=profile_right(v0_init, 2), y=x_right,  mode='lines', line=dict(color='red', width=2), showlegend=False), row=2, col=2)
fig.add_trace(go.Scatter(x=[0,1.1], y=[v0_init-0.2,v0_init-0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=2)
fig.add_trace(go.Scatter(x=[0,1.1], y=[v0_init+0.2,v0_init+0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=2)

# Add frames to figure
fig.frames = frames


# Settings to draw a black border line around the plot area
BORDER_SETTINGS = dict(
    showline=True,
    linecolor='black',
    linewidth=1,
    mirror=True # This forces the line to be drawn on all four sides of the plot area
)

fig.add_hline(y=1, line_color="black", line_width=1, line_dash="solid", row=1, col=1)
fig.add_trace(go.Scatter(x=x_top(1), y=profile_top(x_top(1)), mode='lines', line=dict(color='lightgray', width=1), showlegend=False), row=1, col=1)
fig.add_trace(go.Scatter(x=profile_right(0, 3), y=x_right, mode='lines', line=dict(color='lightblue', width=1), showlegend=False), row=2, col=2)
fig.add_trace(go.Scatter(x=profile_right(0, 4), y=x_right, mode='lines', line=dict(color='lightcoral', width=1), showlegend=False), row=2, col=2)





# Update layout for top plot (row=1, col=1)
fig.update_xaxes( range=[-1, 1], showticklabels=False, showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS,row=1, col=1)
fig.update_yaxes( range=[0, 1.1], showgrid=True, gridwidth=0.5, gridcolor='lightgray', zeroline=True, side='left', **BORDER_SETTINGS, row=1, col=1)

# Update layout for main plot (row=1, col=2)
fig.update_xaxes( range=[-1, 1], showticklabels=True, tickvals=[0], showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS, row=2, col=1)
fig.update_yaxes( range=[-1, 1], tickvals=[0], showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS, row=2, col=1)

# Update layout for bottom plot (row=2, col=2)
fig.update_xaxes( range=[0, 1.1], showgrid=True, gridwidth=0.5, gridcolor='lightgray', zeroline=True, side='left', **BORDER_SETTINGS, row=2, col=2)
fig.update_yaxes( range=[-1, 1], showticklabels=False, showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS, row=2, col=2)

# Add slider
sliders = [dict(
    active=1,  # Start at v0=0 (middle of range)
    yanchor="top",
    y=-0.08,
    xanchor="left",
    x=0,
    currentvalue=dict(
        prefix="v0: ",
        visible=False,
        xanchor="right"
    ),
    pad=dict(b=10, t=50),
    len=0.75,
    steps=[dict(
        args=[[f.name], dict(
            frame=dict(duration=0, redraw=True),
            mode="immediate",
            transition=dict(duration=0)
        )],
        label=f"{v0:.2f}",
        method="animate"
    ) for f, v0 in zip(frames, v0_values)]
)]

fig.update_layout(
    sliders=sliders,
    height=650,
    width=650,
    showlegend=False,
    plot_bgcolor='white',
    margin=dict(l=80, r=50, t=75, b=75)
)

# Add annotations
#fig.add_annotation( text="Δω = k v<sub>z</sub>", xref="x2", yref="y2", x=0.6, y=0.88, showarrow=False, font=dict(size=18, color='black'), xanchor='center')
#fig.add_annotation( text="Δω = - k v<sub>z</sub>", xref="x2", yref="y2", x=-0.4, y=0.7, showarrow=False, font=dict(size=18, color='black'), xanchor='center')

# Labels using annotations to position them correctly
fig.add_annotation( text="transmitted<br>laser intensity", xref="paper", yref="paper", x=-0.075, y=0.99, showarrow=False, font=dict(size=15), textangle=-90, xanchor='center', yanchor='top')

fig.add_annotation( text="velocity v<sub>z</sub>", xref="paper", yref="paper", x=-0.05, y=0.37, showarrow=False, font=dict(size=15), textangle=-90, xanchor='center', yanchor='middle')

fig.add_annotation( text="frequency Δω", xref="paper", yref="paper", x=0.37, y=-0.025, showarrow=False, font=dict(size=15), xanchor='center', yanchor='top')

fig.add_annotation( text="ground state<br>populations N<sub>1</sub>, N<sub>2</sub>", xref="paper", yref="paper", x=0.87, y=0.74, showarrow=False, font=dict(size=15), xanchor='center', yanchor='bottom')


fig.show()

How to read the interactive plot

• Central plot: Shows the Doppler shifts for atoms in both hyperfine ground states. At a given laser detuning, atoms from either state can be resonant.

• Right plot: Shows the ground-state populations \(N_1\) (blue) and \(N_2\) (red) as a function of velocity.

• Top plot: Shows the transmitted intensity, which is primarily affected by absorption from whichever ground state is resonant.

Velocity-dependent population pumping

• Atoms with velocity \(v\) in \(N_1\) may absorb photons and be excited to the upper state, then decay into \(N_2\).
• Conversely, atoms in \(N_2\) with different velocities may absorb photons and decay into \(N_1\).
• As a result, the laser redistributes population between \(N_1\) and \(N_2\) depending on velocity.
• For some velocity classes, atoms accumulate in a ground state that is off-resonant with the laser for that velocity. These atoms stop interacting efficiently with the light — we can think of them as dark states.
• For other velocities, atoms are still partially resonant with the laser, so they continue to absorb photons until they are eventually pumped into a dark state. These temporarily absorbing atoms are sometimes called bright states, but note that this “bright” label is transient and velocity-dependent.
• This velocity-dependent redistribution explains why the transmitted intensity varies in a non-uniform way: some velocity classes stop absorbing (dark), while others still absorb (bright), creating the characteristic features seen in the interactive plot.

Key points

• The total absorption is reduced because different velocity classes share the same laser photons, similar to saturation effects in two-level systems.

• The effect depends on experimental parameters: laser intensity, interaction time, atomic density, and temperature. The plot shows only the qualitative behavior.

• This mechanism is central to techniques such as optical pumping, coherent population trapping, and electromagnetically induced transparency (EIT).

Observing the effect

• Use the slider to scan the laser frequency.

• Notice how population is transferred from \(N_1\) to \(N_2\) for some velocities and from \(N_2\) to \(N_1\) for others.

• The resulting dark states reduce absorption for specific velocity classes, affecting the transmitted intensity in the top plot.

---

4. Saturated Absorption and Crossover Peaks in a \(\Lambda\) System

When the laser is back-reflected, atoms with small velocities along the beam axis can interact with both forward and backward beams simultaneously. This leads to narrow saturation features within the Doppler-broadened profile, analogous to the Lamb dips in a two-level system.

import numpy as np
import plotly.graph_objects as go
from plotly.subplots import make_subplots
from scipy.stats import norm, cauchy

# FWHM = 2.355 * sigma, so sigma = FWHM / 2.355
fwhm = 1
sigma = fwhm / 2.355
width = 0.02;

# Prepare data
v = np.linspace(-1, 1, 100)
L = 1 * v


x_right = np.linspace(-1, 1, 200)

def profile_right(v0, n):
    dwidth = 0.08;
    pop1_raw=0.6 * norm.pdf(x_right, 0, sigma)/norm.pdf(0, 0, sigma)
    pop2_raw=0.4 * norm.pdf(x_right, 0, sigma)/norm.pdf(0, 0, sigma)
    depl1= 0.25*np.tanh(0.2 * (norm.pdf(x_right-v0-0.2, 0, dwidth)+norm.pdf(x_right+v0+0.2, 0, dwidth)))*pop1_raw
    depl2= 0.25*np.tanh(0.2 * (norm.pdf(x_right-v0+0.2, 0, dwidth)+norm.pdf(x_right+v0-0.2, 0, dwidth)))*pop2_raw
    pop1 = pop1_raw - depl1 + depl2
    pop2 = pop2_raw + depl1 - depl2
    exc1 = (cauchy.pdf(2*(x_right-v0-0.2)/width)+cauchy.pdf(2*(x_right+v0+0.2)/width)) / cauchy.pdf(0)
    exc2 = (cauchy.pdf(2*(x_right-v0+0.2)/width)+cauchy.pdf(2*(x_right+v0-0.2)/width)) / cauchy.pdf(0)
    pop1 = pop1 * ( 1 - 0.5*np.tanh(exc1/0.5) )
    pop2 = pop2 * ( 1 - 0.5*np.tanh(exc2/0.5) )
    if (n==1):
        return pop1
    elif (n==2):
        return pop2
    elif (n==3):
        return pop1_raw
    elif (n==4):
        return pop2_raw
    else: return 0


# Bottom plot - Gaussian
#def gaussian_b(v0):
#    x_bottom = np.linspace(-1, 1, 200)
#    return profile_bottom(v0, x_bottom)

# Left plot - 1 - 0.5*Gaussian
#x_top = np.linspace(-1, 1, 200)
#gaussian_top = norm.pdf(x_top, 0, sigma)/norm.pdf(0, 0, sigma)
#profile_top = 1 - 0.3 * gaussian_top

def x_top(x):
    return np.linspace(-1, x, int(100*(1+x)))

def profile_top(x):
    return 1 - 0.3 * norm.pdf(x, 0, sigma)/norm.pdf(0, 0, sigma)

def profile2_top(x):
    return 1 - 0.5 * norm.pdf(x, 0, sigma)/norm.pdf(0, 0, sigma)

def profile_lambdip_top(x):
    return 1 - 0.5 * norm.pdf(x, 0, sigma)/norm.pdf(0, 0, sigma) + (0.1 * (cauchy.pdf(2*(x-0.2)/(1.4*width))+ cauchy.pdf(2*(x+0.2)/(1.4*width)))-0.2*cauchy.pdf(2*(x)/(1.*width))) / cauchy.pdf(0)




# Create subplots
fig = make_subplots(
    rows=2, cols=2,
    row_heights=[0.25, 0.75],
    column_widths=[0.75, 0.25],
    horizontal_spacing=0.02,
    vertical_spacing=0.02,
    specs=[[{"type": "xy"}, None],
           [{"type": "xy"}, {"type": "xy"}]]
)

# Create frames for animation/slider
v0_values = np.linspace(-1, 1, 41)  # 41 steps from -1 to 1
frames = []

for v0 in v0_values:
    frame_data = [
        # Top plot trace
        go.Scatter(x=x_top(v0), y=profile_lambdip_top(x_top(v0)), mode='lines', line=dict(color='green', width=2), showlegend=False),
        # Top plot arrow
        go.Scatter(x=[v0], y=[profile_lambdip_top(v0)], mode="markers", marker=dict(symbol='arrow-down', size=11, color="red")),
        go.Scatter(x=[v0,v0], y=[1,profile_lambdip_top(v0)], mode='lines', line=dict( color='red', width=2), showlegend=False),
        go.Scatter(x=[v0,v0], y=[0,profile_lambdip_top(v0)], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False),

        # Main plot line
        go.Scatter(x=v, y=L-0.2, mode='lines', line=dict(color='red', width=2), showlegend=False),
        go.Scatter(x=v, y=L+0.2, mode='lines', line=dict(color='blue', width=2), showlegend=False),
        go.Scatter(x=v, y=-(L-0.2), mode='lines', line=dict(color='red', width=2), showlegend=False),
        go.Scatter(x=v, y=-(L+0.2), mode='lines', line=dict(color='blue', width=2), showlegend=False),
        # Main plot marker
        go.Scatter(x=[v0,v0], y=[-1,1], mode='lines',
                   line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[v0,1], y=[v0-0.2,v0-0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[v0,1], y=[v0+0.2,v0+0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[v0,1], y=[-(v0-0.2),-(v0-0.2)], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[v0,1], y=[-(v0+0.2),-(v0+0.2)], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        # Main plot dot
        go.Scatter(x=[v0], y=[v0-0.2], mode='markers', marker=dict(size=10, color='red'), showlegend=False),
        go.Scatter(x=[v0], y=[v0+0.2], mode='markers', marker=dict(size=10, color='red'), showlegend=False),
        go.Scatter(x=[v0], y=[-(v0-0.2)], mode='markers', marker=dict(size=10, color='red'), showlegend=False),
        go.Scatter(x=[v0], y=[-(v0+0.2)], mode='markers', marker=dict(size=10, color='red'), showlegend=False),
        # Right plot
        go.Scatter(x=profile_right(v0, 1), y=x_right, mode='lines', line=dict(color='blue', width=2), showlegend=False),
        go.Scatter(x=profile_right(v0, 2), y=x_right, mode='lines', line=dict(color='red', width=2), showlegend=False),
        # Right plot marker
        go.Scatter(x=[0,1.1], y=[v0-0.2,v0-0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[0,1.1], y=[v0+0.2,v0+0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[0,1.1], y=[-(v0-0.2),-(v0-0.2)], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False),
        go.Scatter(x=[0,1.1], y=[-(v0+0.2),-(v0+0.2)], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False)
    ]
    frames.append(go.Frame(data=frame_data, name=str(v0)))

# Initial v0 = 0
v0_init = -0.95

# Add traces for initial state
# Top plot (row=1, col=1)
fig.add_trace(go.Scatter(x=x_top(v0_init), y=profile_lambdip_top(x_top(v0_init)), mode='lines', line=dict(color='green', width=2), showlegend=False), row=1, col=1)
fig.add_trace(go.Scatter(x=[v0_init], y=[profile_lambdip_top(v0_init)], mode="markers", marker=dict(symbol='arrow-down', size=11, color="red")), row=1, col=1)
fig.add_trace(go.Scatter(x=[v0_init,v0_init], y=[1,profile_lambdip_top(v0_init)], mode='lines', line=dict( color='red', width=2), showlegend=False), row=1, col=1)
fig.add_trace(go.Scatter(x=[v0_init,v0_init], y=[profile_lambdip_top(v0_init),0], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=1, col=1)

# Main plot (row=1, col=2)
fig.add_trace(go.Scatter(x=v, y=L-0.2, mode='lines', line=dict(color='red', width=2), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=v, y=L+0.2, mode='lines', line=dict(color='blue', width=2), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=-v, y=L-0.2, mode='lines', line=dict(color='blue', width=2), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=-v, y=L+0.2, mode='lines', line=dict(color='red', width=2), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init,v0_init], y=[-1,1], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init,1], y=[v0_init-0.2,v0_init-0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init,1], y=[v0_init+0.2,v0_init+0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init,1], y=[-(v0_init-0.2),-(v0_init-0.2)], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init,1], y=[-(v0_init+0.2),-(v0_init+0.2)], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init], y=[v0_init-0.2], mode='markers', marker=dict(size=10, color='red'), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init], y=[v0_init+0.2], mode='markers', marker=dict(size=10, color='red'), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init], y=[-(v0_init-0.2)], mode='markers', marker=dict(size=10, color='red'), showlegend=False), row=2, col=1)
fig.add_trace(go.Scatter(x=[v0_init], y=[-(v0_init+0.2)], mode='markers', marker=dict(size=10, color='red'), showlegend=False), row=2, col=1)

# Right plot (row=2, col=2)
fig.add_trace(go.Scatter(x=profile_right(v0_init, 1), y=x_right,  mode='lines', line=dict(color='blue', width=2), showlegend=False), row=2, col=2)
fig.add_trace(go.Scatter(x=profile_right(v0_init, 2), y=x_right,  mode='lines', line=dict(color='red', width=2), showlegend=False), row=2, col=2)
fig.add_trace(go.Scatter(x=[0,1.1], y=[v0_init-0.2,v0_init-0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=2)
fig.add_trace(go.Scatter(x=[0,1.1], y=[v0_init+0.2,v0_init+0.2], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=2)
fig.add_trace(go.Scatter(x=[0,1.1], y=[-(v0_init-0.2),-(v0_init-0.2)], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=2)
fig.add_trace(go.Scatter(x=[0,1.1], y=[-(v0_init+0.2),-(v0_init+0.2)], mode='lines', line=dict(dash='dash', color='black', width=0.5), showlegend=False), row=2, col=2)

# Add frames to figure
fig.frames = frames


# Settings to draw a black border line around the plot area
BORDER_SETTINGS = dict(
    showline=True,
    linecolor='black',
    linewidth=1,
    mirror=True # This forces the line to be drawn on all four sides of the plot area
)

fig.add_hline(y=1, line_color="black", line_width=1, line_dash="solid", row=1, col=1)
fig.add_trace(go.Scatter(x=x_top(1), y=profile_top(x_top(1)), mode='lines', line=dict(color='lightgray', width=1), showlegend=False), row=1, col=1)
fig.add_trace(go.Scatter(x=x_top(1), y=profile2_top(x_top(1)), mode='lines', line=dict(color='gray', width=1), showlegend=False), row=1, col=1)
fig.add_trace(go.Scatter(x=profile_right(0, 3), y=x_right, mode='lines', line=dict(color='lightblue', width=1), showlegend=False), row=2, col=2)
fig.add_trace(go.Scatter(x=profile_right(0, 4), y=x_right, mode='lines', line=dict(color='lightcoral', width=1), showlegend=False), row=2, col=2)





# Update layout for top plot (row=1, col=1)
fig.update_xaxes( range=[-1, 1], showticklabels=False, showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS,row=1, col=1)
fig.update_yaxes( range=[0, 1.1], showgrid=True, gridwidth=0.5, gridcolor='lightgray', zeroline=True, side='left', **BORDER_SETTINGS, row=1, col=1)

# Update layout for main plot (row=1, col=2)
fig.update_xaxes( range=[-1, 1], showticklabels=True, tickvals=[0], showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS, row=2, col=1)
fig.update_yaxes( range=[-1, 1], tickvals=[0], showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS, row=2, col=1)

# Update layout for bottom plot (row=2, col=2)
fig.update_xaxes( range=[0, 1.1], showgrid=True, gridwidth=0.5, gridcolor='lightgray', zeroline=True, side='left', **BORDER_SETTINGS, row=2, col=2)
fig.update_yaxes( range=[-1, 1], showticklabels=False, showgrid=False, gridwidth=0.5, gridcolor='lightgray', zeroline=True, **BORDER_SETTINGS, row=2, col=2)

# Add slider
sliders = [dict(
    active=1,  # Start at v0=0 (middle of range)
    yanchor="top",
    y=-0.08,
    xanchor="left",
    x=0,
    currentvalue=dict(
        prefix="v0: ",
        visible=False,
        xanchor="right"
    ),
    pad=dict(b=10, t=50),
    len=0.75,
    steps=[dict(
        args=[[f.name], dict(
            frame=dict(duration=0, redraw=True),
            mode="immediate",
            transition=dict(duration=0)
        )],
        label=f"{v0:.2f}",
        method="animate"
    ) for f, v0 in zip(frames, v0_values)]
)]

fig.update_layout(
    sliders=sliders,
    height=650,
    width=650,
    showlegend=False,
    plot_bgcolor='white',
    margin=dict(l=80, r=50, t=75, b=75)
)

# Add annotations
#fig.add_annotation( text="Δω = k v<sub>z</sub>", xref="x2", yref="y2", x=0.6, y=0.88, showarrow=False, font=dict(size=18, color='black'), xanchor='center')
#fig.add_annotation( text="Δω = - k v<sub>z</sub>", xref="x2", yref="y2", x=-0.4, y=0.7, showarrow=False, font=dict(size=18, color='black'), xanchor='center')

# Labels using annotations to position them correctly
fig.add_annotation( text="transmitted<br>laser intensity", xref="paper", yref="paper", x=-0.075, y=0.99, showarrow=False, font=dict(size=15), textangle=-90, xanchor='center', yanchor='top')

fig.add_annotation( text="velocity v<sub>z</sub>", xref="paper", yref="paper", x=-0.05, y=0.37, showarrow=False, font=dict(size=15), textangle=-90, xanchor='center', yanchor='middle')

fig.add_annotation( text="frequency Δω", xref="paper", yref="paper", x=0.37, y=-0.025, showarrow=False, font=dict(size=15), xanchor='center', yanchor='top')

fig.add_annotation( text="ground state<br>populations N<sub>1</sub>, N<sub>2</sub>", xref="paper", yref="paper", x=0.87, y=0.74, showarrow=False, font=dict(size=15), xanchor='center', yanchor='bottom')


fig.show()

4.1 Lamb dips

• In the \(\Lambda\) system, each hyperfine transition shows a Lamb dip at the corresponding resonance frequency.
• Due to velocity-dependent population pumping into dark states, these dips are less pronounced than in a simple two-level system.
• The dip depth and shape depend on experimental parameters such as laser intensity, atomic density, and interaction time.

4.2 Crossover peak

• Consider the example in the plot, with two hyperfine ground states \(N_1\) and \(N_2\):

  • Atoms in \(N_1\) with velocity \(v\) may absorb photons from the forward beam and decay into \(N_2\).
  • Atoms in \(N_2\) with the same velocity can simultaneously absorb photons from the backward beam and decay into \(N_1\).
  • This repumping process keeps the atoms cycling continuously between ground and excited states at this velocity.

• Crossover peak:

  • There is one prominent crossover peak in this example.
  • It occurs when the forward beam interacts with \(N_1\) and the backward beam interacts with \(N_2\) at the same velocity.
  • At this velocity, there is effectively no dark state: repumping keeps all atoms available for absorption.
  • As a result, absorption is enhanced compared to nearby velocities, producing the narrow Doppler-free crossover peak.

Key idea

• The crossover peak demonstrates how velocity-dependent repumping in a \(\Lambda\) system can produce narrow Doppler-free features even when each individual beam is saturated.
• It highlights that population dynamics depend not just on saturation, but also on the interplay of beam directions, velocity classes, and hyperfine structure.

---

5. Doppler-Free Spectroscopy on Lithium-7

In this section, we look at a concrete experimental example. In the laser-cooling laboratory at Missouri S&T, we use Doppler-free saturation spectroscopy on lithium to generate a precise frequency reference.

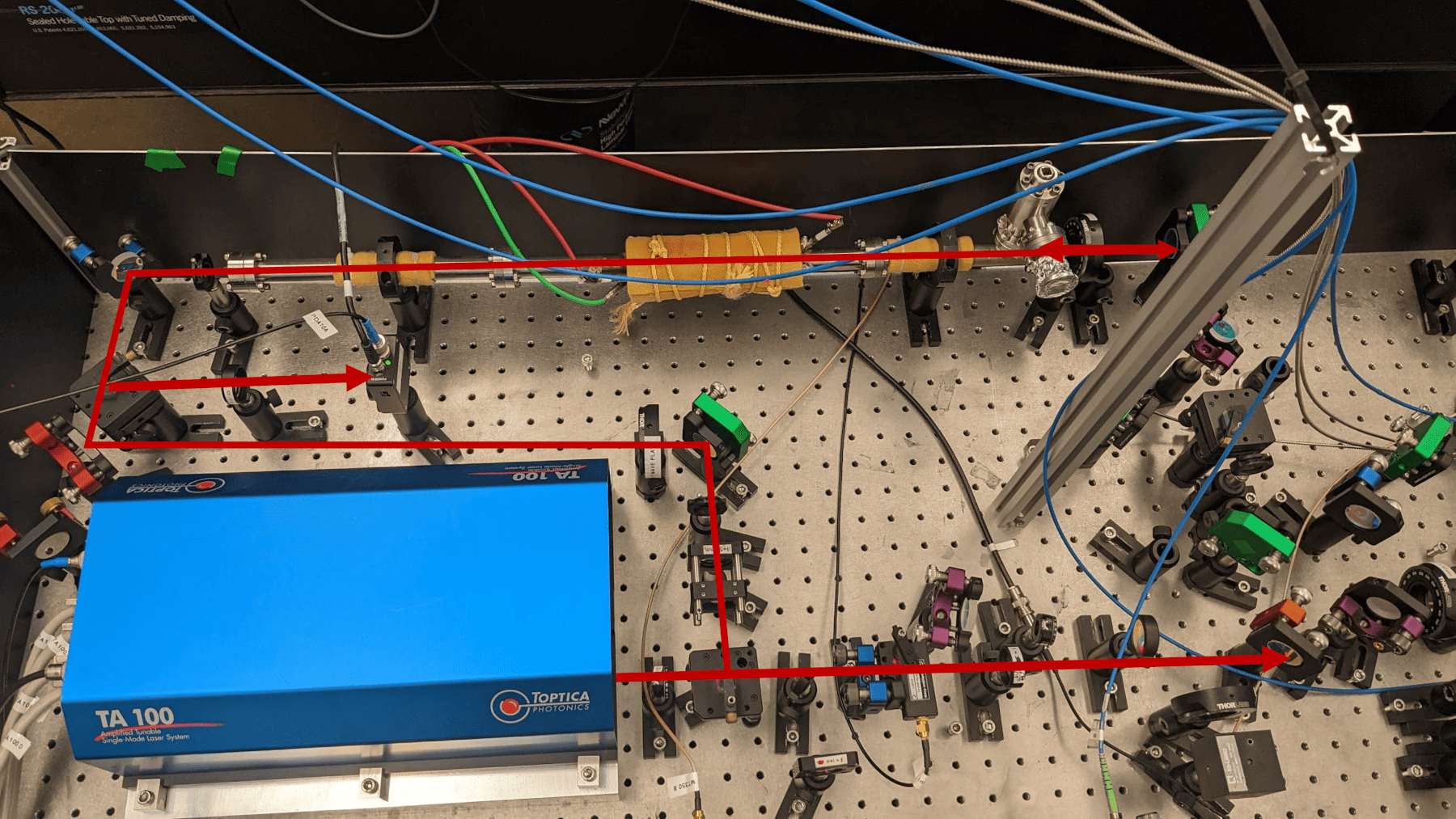

A photo of the setup is shown below. It features the laser used to cool lithium atoms to millikelvin temperatures. To achieve this, the laser must be tuned and locked to a frequency very close to the \(2\,^2S_{1/2} \rightarrow 2\,^2P_{3/2}\) resonance. The Doppler-free spectroscopy signal provides the frequency reference and locking signal needed for this stabilization.

A small fraction of the laser light (the laser is enclosed in the blue box) is separated from the main cooling beam and directed through a vacuum tube (visible at the top of the picture) containing lithium vapor heated to about 700 K. The laser beam is back-reflected, passing through the vapor a second time before being detected by a photodiode, which measures the transmitted laser intensity.

Setup for Doppler-free saturation absorption spectroscopy of lithium at Missouri S&T.

5.1 Experimental Data

When the laser frequency is scanned across the resonance, the photodiode signal—proportional to the transmitted laser intensity—is recorded as a function of frequency.

The resulting trace is shown below. You can use the zoom function of this interactive plot to examine the different spectral features in more detail.

import pandas as pd
import plotly.graph_objects as go

# Read the CSV file with tab delimiter
df = pd.read_csv('./DigiLock.csv', sep='\t')


# Get the first column (independent variable - time)
time = df.iloc[:, 0]

# Get the second column (dependent variable - laser intensity)
laser_intensity = df.iloc[:, 1]

# Create the Plotly line chart
fig = go.Figure()

fig.add_trace(go.Scatter(
    x=time,
    y=laser_intensity,
    mode='lines',
    name='Laser Intensity',
    line=dict(color='blue', width=2)
))

# Update layout with axis labels, aspect ratio, and box
fig.update_layout(
    xaxis_title='Scan Time',
    yaxis_title='Laser Intensity (Diode Voltage)',
    template='plotly_white',
    hovermode='x unified',
    width=700,
    height=500,
    xaxis=dict(
        showline=True,
        linewidth=2,
        linecolor='black',
        mirror=True
    ),
    yaxis=dict(
        showline=True,
        linewidth=2,
        linecolor='black',
        mirror=True
    )
)

fig.add_annotation( text='2 <sup>2</sup>S<sub>1/2</sub> → 2 <sup>2</sup>P<sub>3/2</sub>', xref="x", yref="y", x=0.0367, y=0.85, showarrow=False, font=dict(size=15, color='black'), textangle=-90, xanchor='center')
fig.add_annotation( text='2 <sup>2</sup>S<sub>1/2</sub> → 2 <sup>2</sup>P<sub>1/2</sub>', xref="x", yref="y", x=0.0143, y=0.85, showarrow=False, font=dict(size=15, color='black'), textangle=-90, xanchor='center')


# Show the plot
fig.show()

# Optionally, save as HTML
# fig.write_html('laser_intensity_plot.html')

5.2 Interpretation of the Experimental Data

In the experimental spectrum, two broad absorption features can be seen. The left dip corresponds to the \(2\,^2S_{1/2} \rightarrow 2\,^2P_{1/2}\) transition (commonly referred to in spectroscopy as the D1 line), and the right dip corresponds to the \(2\,^2S_{1/2} \rightarrow 2\,^2P_{3/2}\) transition (the D2 line).

To understand the finer details of the spectrum, we now examine the substructure of the energy levels, shown in the level diagram below.

Qualitative level diagram of the \(^7\)Li \(2^2S_{1/2}\), \(2^2P_{1/2}\), and \(2^2P_{3/2}\) states (not to scale).

The \(2\,^2S_{1/2} \rightarrow 2\,^2P_{3/2}\) transition

The \(2\,^2S_{1/2}\) ground state is split into two hyperfine levels with total angular momenta \(F=1\) and \(F=2\). Their separation is about \(800\,\)MHz, which is much larger than both the natural linewidth of the transition (approximately \(6\,\)MHz) and the experimental resolution.

The excited \(2\,^2P_{3/2}\) state contains four hyperfine sublevels (\(F=0\) to \(F=3\)). However, their splittings are only a few megahertz—comparable to the natural linewidth—so they cannot be resolved in the experiment. This makes the observed system effectively a three-level \(\Lambda\) system, equivalent to the one discussed in Section 4 5.

In the experimental spectrum, a Lamb dip is observed on each side of the Doppler-broadened absorption profile, corresponding to the two ground-state hyperfine components.
Additionally, there is a strong central feature—the crossover peak—which arises when both counter-propagating laser beams interact with atoms of the same velocity, one via each ground-state hyperfine level.

The \(2\,^2S_{1/2} \rightarrow 2\,^2P_{1/2}\) transition

The excited \(2\,^2P_{1/2}\) state exhibits a much larger hyperfine splitting—about \(92\,\)MHz—than the higher-lying \(2\,^2P_{3/2}\) state discussed above.
This separation is well within the experimental resolution, allowing the individual hyperfine components to be clearly resolved in the measured spectrum.

As a result, the overall spectral structure appears more complex and detailed, showing a further splitting of both the Lamb dips and the crossover feature.
